Provence Hybrid Plant

A 120 MW hybrid plant: six wind turbines, four PV inverter blocks, two battery racks, the main 33/225 kV transformer, the grid connection point and a meteorological mast.

DjiniousCCOperations & SCADA

The Provence Hybrid Plant single-line overview in DjiniousCC: six wind turbines and four PV blocks feeding a 33 kV collector bus, two battery racks, the main transformer and the 225 kV grid connection.

site code: PROVsite code
assets: 15assets
live tags: 99live tags
authority class: C4authority classoperational action

Site PROV, Manosque, France. These are not mock-ups: all five sites run side by side in the same DjiniousCC instance — 99 assets and 693 live tags, acquired at 1 Hz, historised, alarmed, and each with a procedure that has been dry-run and proven on an isolated twin.

A gust front arrives faster than a phone tree

Sustained 22 m/s wind across the field puts every turbine near rated power under high mechanical load. The protective action — ramp the field down — has to be right, agreed and applied within minutes, and it has to be defensible afterwards.

What the platform models here

Each family has a behavioural model that the live simulator and the proving twin share, so a dry-run behaves the way the plant does.

Wind turbines · PV inverter blocks · Battery racks · Power transformer · Grid connection · Met mast

The procedure: High-Wind Curtailment Ramp-Down

Protect the wind field from mechanical overload during a high-wind gust front by ramping turbines to 30 % and confirming with the shift supervisor. Authority class: C4 · operational action.

Step 1
Decision: wind ≥ 20 m/s?
Step 2
Curtail WTG-01…06 → 30 %
Step 3
Shift-supervisor confirmation
Step 4
Notify control room

The proof: High-Wind Gust Front

Sustained 22 m/s wind across the field — near-rated power with high mechanical load.

Baseline — without the procedure

Wind-field active power ≤ 1.3 MW — measured 3.60 MW
Rotor speed ≤ 12 rpm after mitigation — measured 15.0 rpm

With the procedure — every assertion holds

Wind-field active power ≤ 1.3 MW — measured 1.08 MW
Rotor speed ≤ 12 rpm after mitigation — measured 4.50 rpm

Six commands intercepted on the twin. This is the loop the copilot drives end to end in the copilot capture below.

What the control room sees

The DjiniousCC copilot showing a proposed high-wind curtailment procedure, its dry-run on an isolated twin with all four assertions passing, six intercepted field commands, and an approve-and-execute gate labelled C4 operational action. — One prompt, the whole loop: proposal, dry-run verdict, the commands it would issue, and the gate that decides whether they are real.

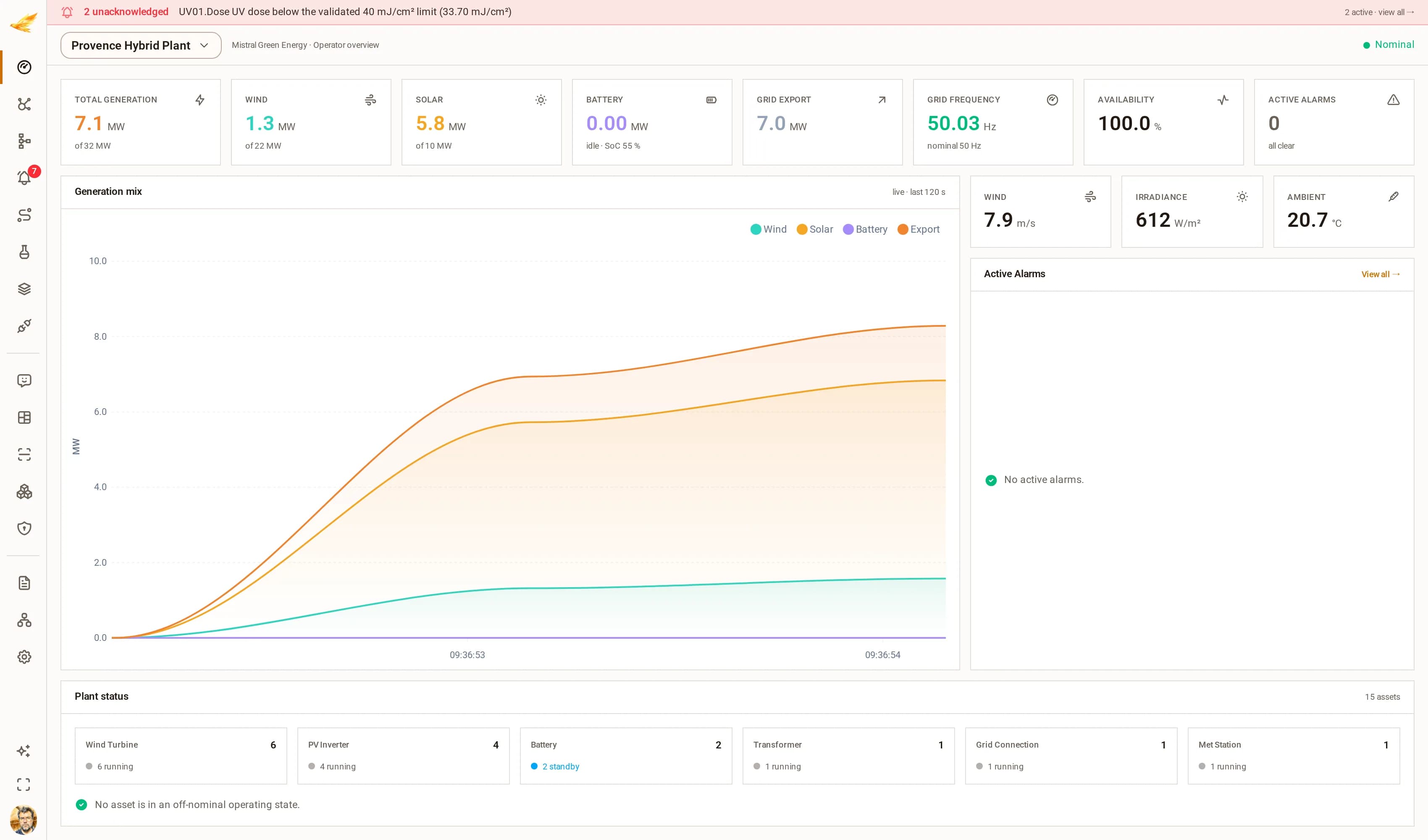

The DjiniousCC operator dashboard for the hybrid plant: generation KPIs, a live generation-mix chart, weather, active alarms and plant status by asset family. — Generation KPIs and the live mix. This row only appears on a plant that actually generates.

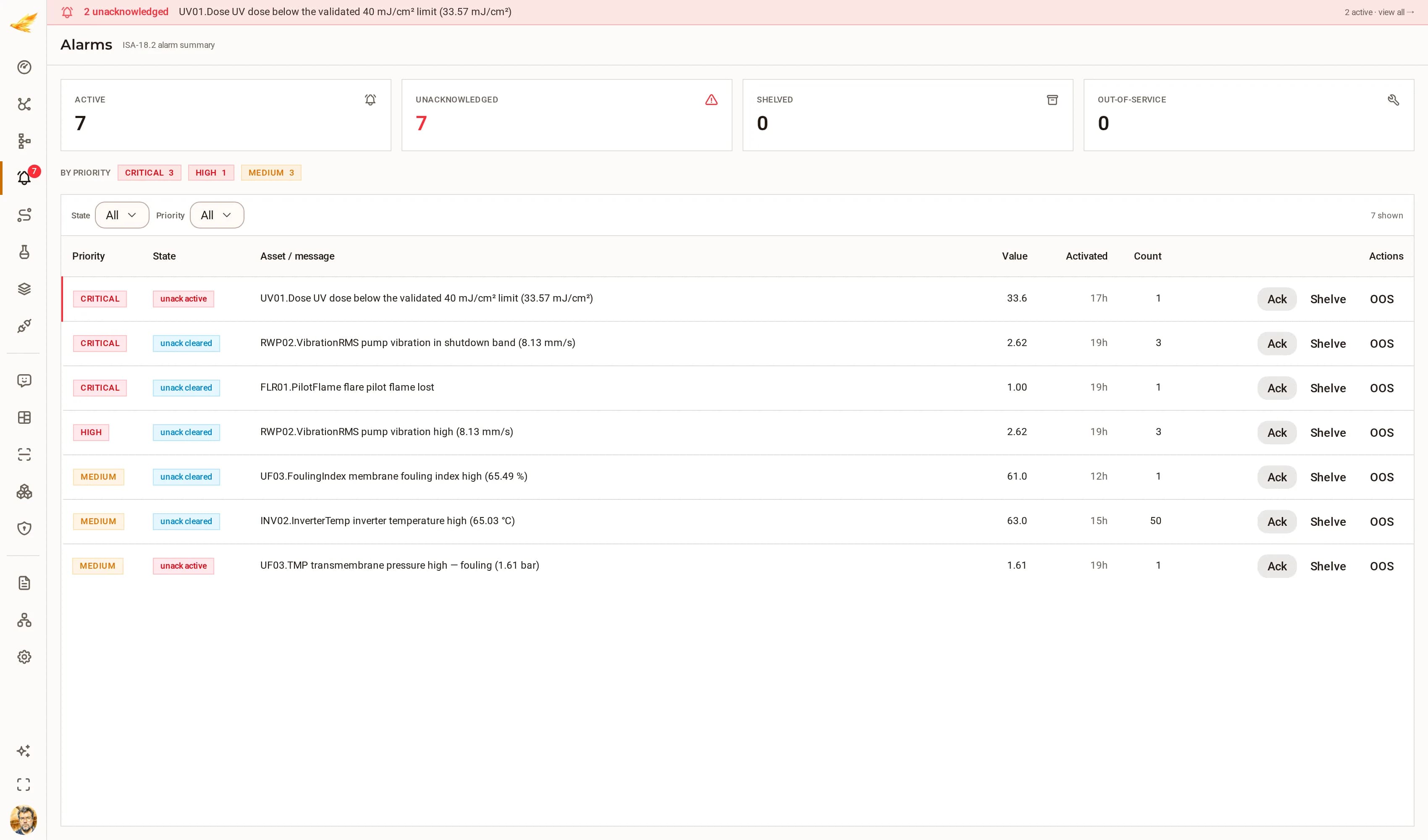

The DjiniousCC alarm list with ISA-18.2 priorities and acknowledgement state. — One alarm list across every plant, priority-ordered, with acknowledgement attributed.
